Steel Bending & Forming

Heavy-duty Bar Benders

bramley-logo-machine-tools-small

These compact, strong machines bend all metals easily and quickly.

  • Flat, Square or Round

Model 062 Manual Bar Bender

Features 4-position quick cam action clamping.

Model 042 Manual Bar Bender

Uses full vice clamping with double spring return.

  • Solid cast iron construction with swivel casting made from spheroidal graphite iron for extra strength
  • Infinitely adjustable angle stop to achieve bends from 0° to just over 90°
  • Swivel bending plate adjusts against steel being bent for sharp bending radius

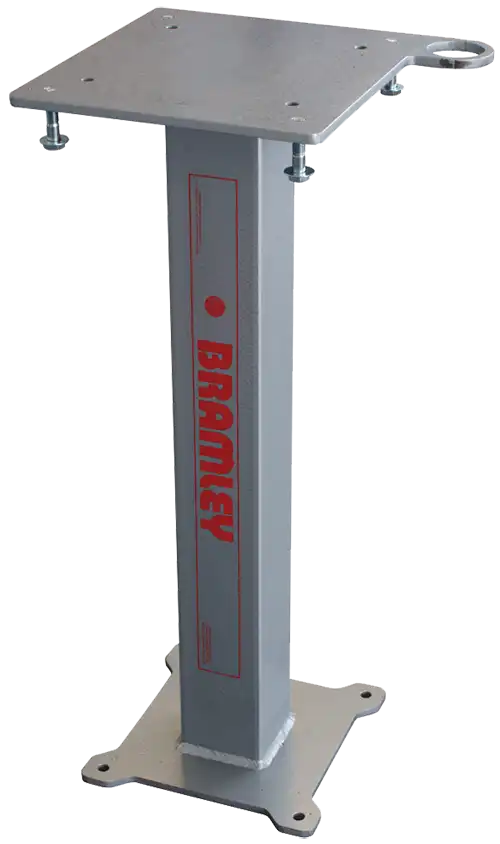

Model 060

Optional floor stand available.





Bar Bender on stand1

Model 042 mounted on optional stand Model 060.

MILD STEEL062042
Capacities in Cold Material
FLAT BAR80 x 6mm or 60 x 8mm or
30 x 12mm		100mm x 8mm or 60 x 10mm or
50 x 12mm
SQUARE20 x 20mm25 x 25mm
ROUNDØ 20mmØ 25mm
Shipping Dimensions44kg, 0.45m368kg, 0.1m3

Capacities are rated on volume of steel to be bent. (i.e. as height is increased, width must be correspondingly decreased)

Model 062

Model 042

Questions to ask when purchasing

  • What size material are you bending?
  • How are you going to mount the Bender?
  • Is speed of clamping important?
  • Is accuracy of bend important to you?

  • Do you want a long life working life of the product?
  • Is having readily available spares important to you?
