Grinding
Heavy-duty Linishers
Linishall Model 1220/100/P1
Linishall Model 2000/75/P1 or P3
Linishall Model 2000/150/P3
- Fully guarded with hinged flap on top for platen linishing
- Front dust chute
- Rear dust extractor port
- Front eye guard
- Tool rests
- Adjustable (by swivelling about pivot point) for height
- Simple tracking & belt change
- 1 or 3 Phase options as indicated by model number
- 3 belt sizes:
- 1220 x 100mm
- 2000 x 75mm
- 2000 x 150mm

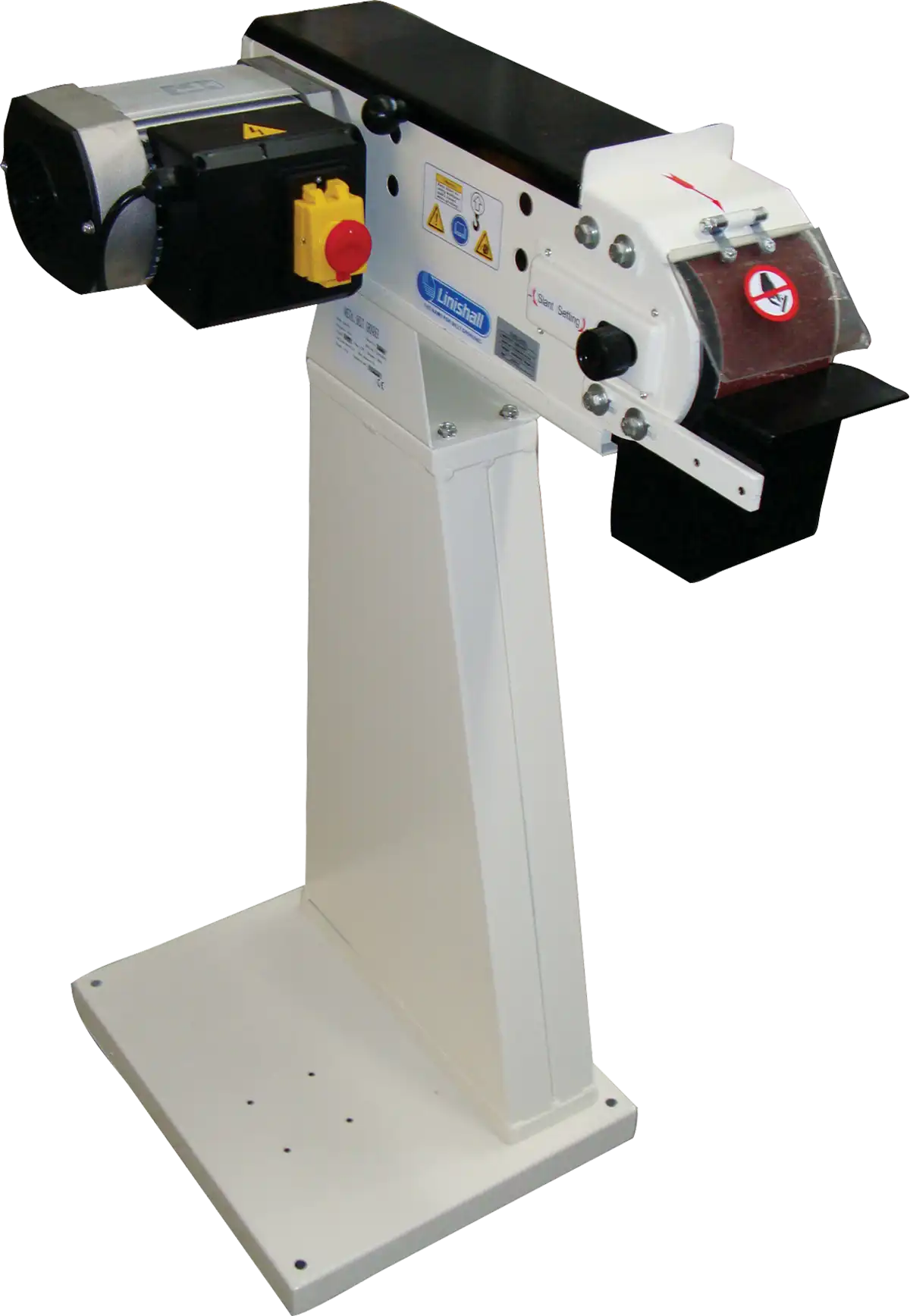

Model 1220/100/P1

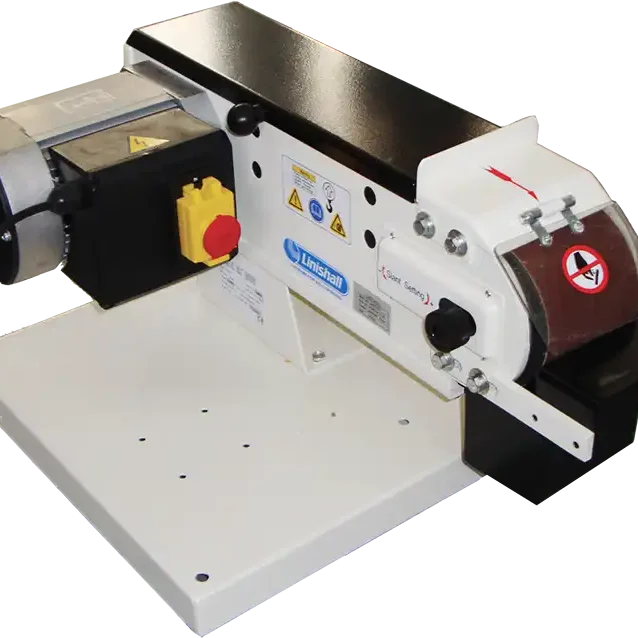

Slower speed machine avoids burning softer material such as wood, plastics etc. Can also be used as a bench mounted machine by removing the included delta stand - see at right.

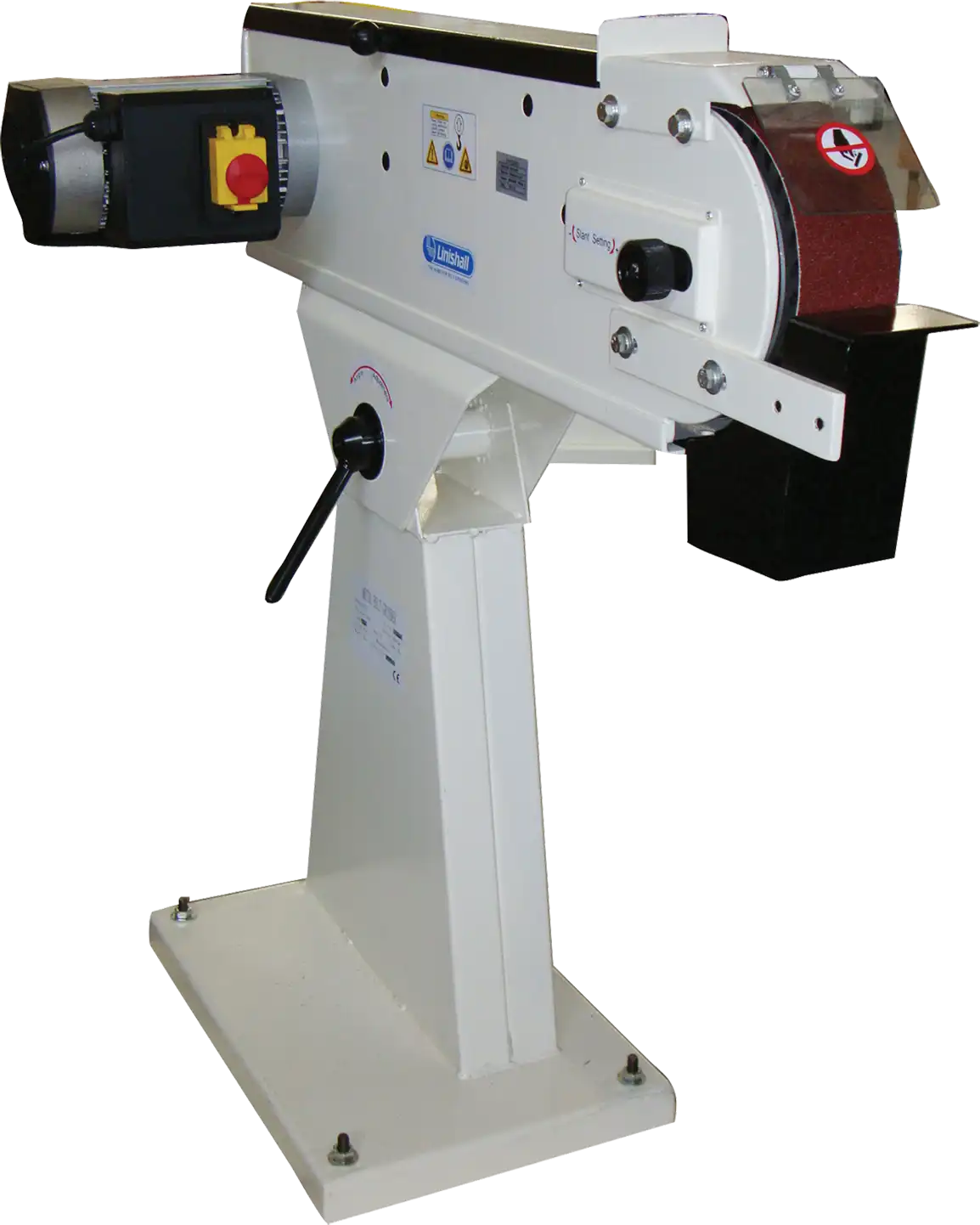

Model 2000/75/P1

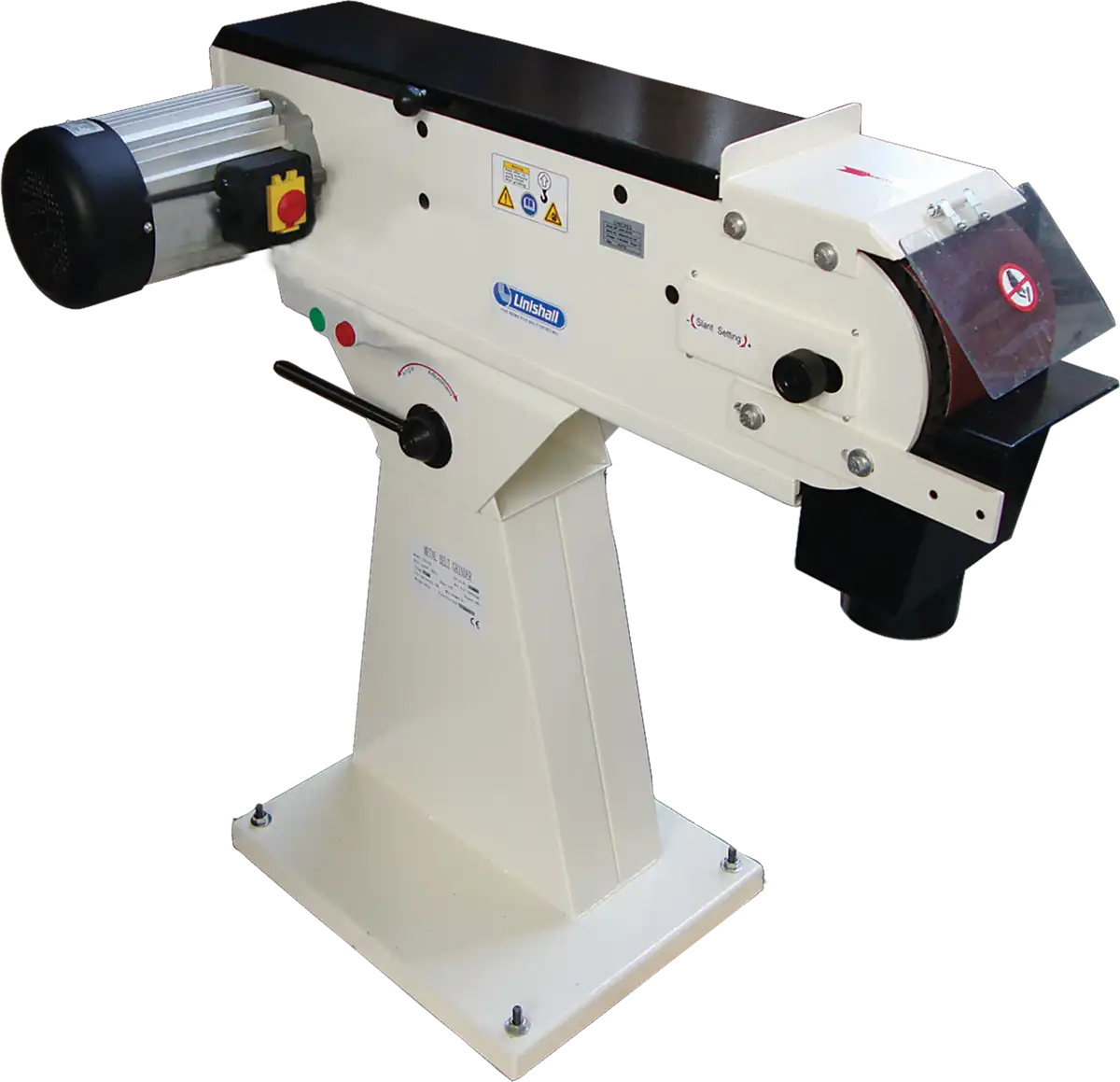

Model 2000/150/P3
| MODEL | Motor | Belt Size | Belt Speed | Carton |
|---|---|---|---|---|
| 1220/100/P1 | 1.5kW (2HP) 1Ph | 1220 x 100mm | 19.0m/sec | 620 x 400 x 345mm |
| 2000/75/P1 | 3.0kW (4HP) 1Ph | 2000 x 75mm | 30.0m/sec | 700 x 490 x 1130mm |
| 2000/75/P3 | 3.0kW (4HP) 3Ph | 2000 x 75mm | 30.0m/sec | 700 x 490 x 1130mm |
| 2000/150/P3 | 4.0kW (5HP) 3Ph | 2000 x 150mm | 29.0m/sec | 700 x 530 x 1130mm |
