Steel Bending & Forming

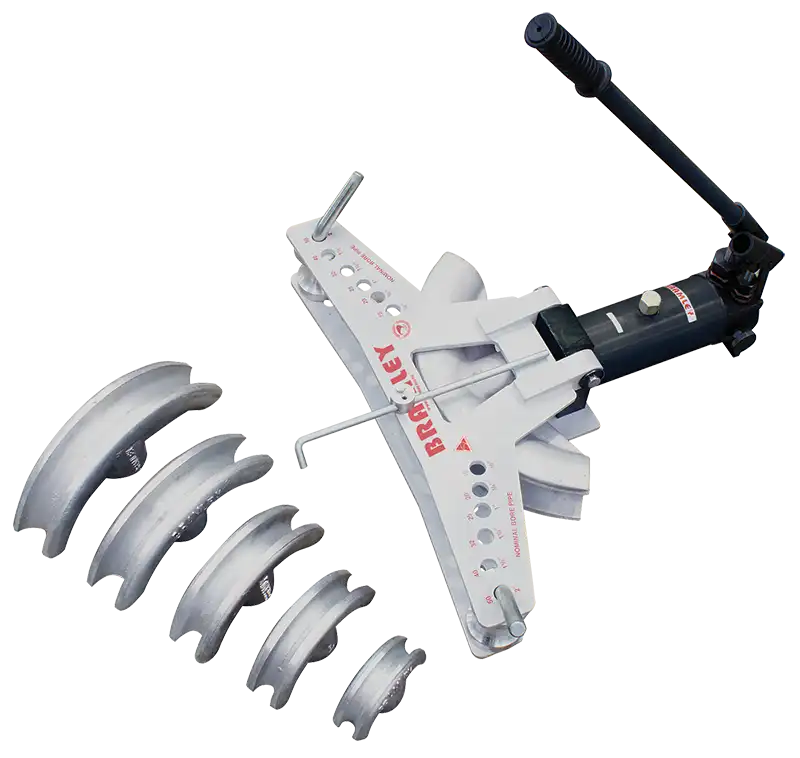

Hydraulic Pipe Bender
Model 024 – 1/2” - 2” N.B.
(3 mm wall thickness) capacity
Supplied with six formers, two bobbins (support slippers) and pins.
- Flip top frame for easy pipe and former replacement
- Spring return ram
- Bending radius measuring stop
- Two-stage pump action
- Lightweight aluminium alloy formers with large angle of arc to support pipe during bending. This results in a bend of superior quality
- Cross section of formers is of “elliptical” form to minimise flattening of bend
- Solid frame fabrication eliminates flexing during bending operation
- Hydraulic ram is easily removed from frame and converts to 12 ton jack
- Formers’ spigot size 38mm
- Shipping: 60kg / 0.09m3
Bending radius measuring stop
| FORMER | RADIUS OF BEND | FORMER | RADIUS OF BEND |
|---|---|---|---|
| 1/2 " | 75mm | 1.1/4" | 175mm |
| 3/4" | 105mm | 1.1/2" | 200mm |
| 1" | 140mm | 2" | 240mm |
Pipe bending attachment includes formers ½ to 2” frame and bobbins / pins
ADDITIONAL OPTION – ELECTRIC POWERED UNIT ALSO AVAILABLE – Can be retro-fitted to manual hydraulic units
