Industrial Heavy-duty Drill Presses
Model DB20 - Garrick Industrial Bench Drill 20mm
Model DP25 - Garrick Industrial Pedestal Drill 25mm
Model DP32 - Garrick Industrial Pedestal Drill 32mm
Heavy-duty Industrial Drill Presses are specifically designed for long motor-running, continuous use applications.
- “V” head design with larger spindle bearing
- Square tables for larger work area, with ‘T’ slots for solid clamping
- Tables tilt and rotate
- Solid one piece Cast Iron operating handles

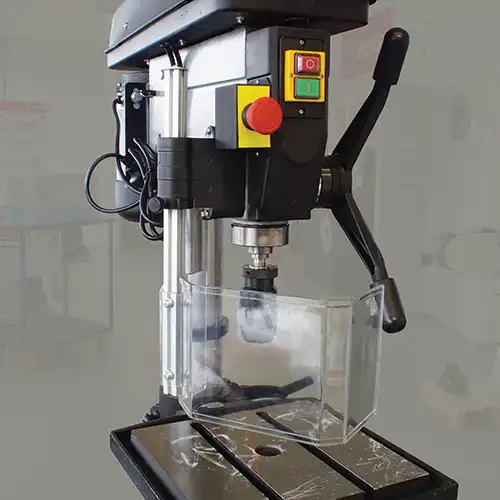

- Safety Guard with flip up cover over chuck as standard

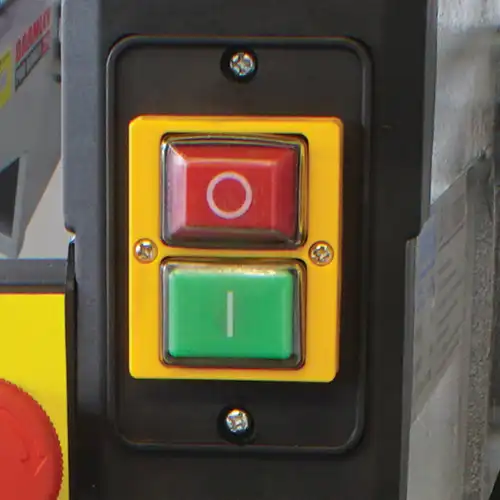

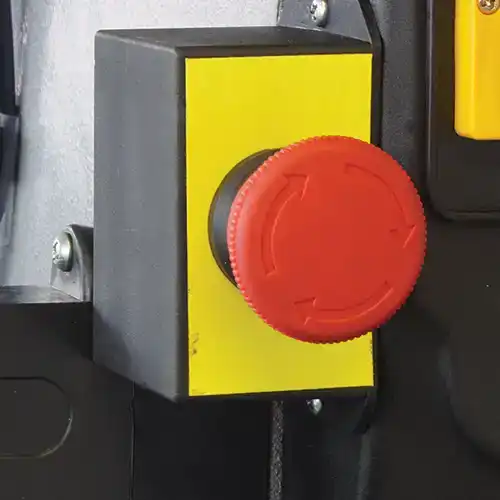

- Emergency stop switches
- Heavy-duty precision depth stops
- Quick action, positive motor adjustment for belt tensioning
- Rack & pinion table height adjustment
- Column & Quill precision machined from thick wall tube for rigidity
- Work light under head (bulb not included for transport reasons)

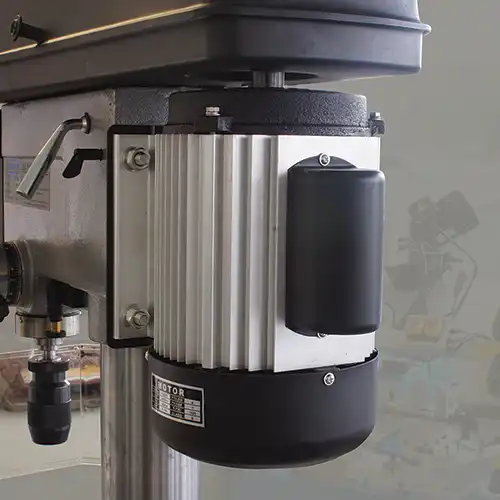

- Powerful 240V Aluminium TEFC motors

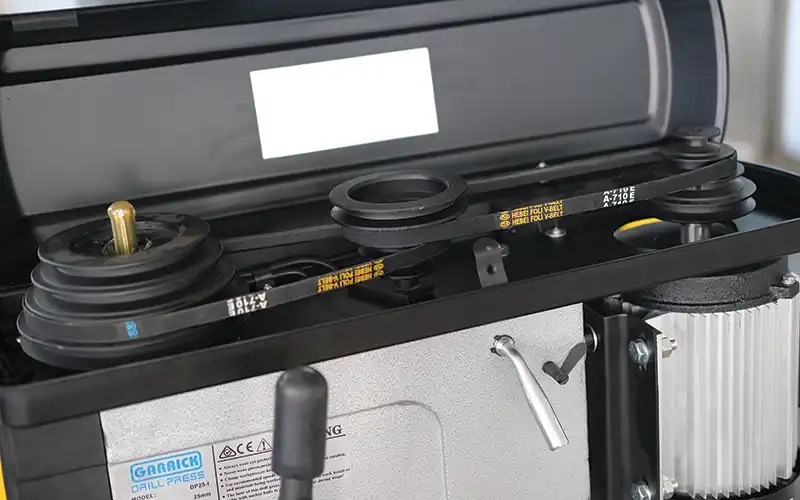

- ‘A’ section V-belts & pulleys

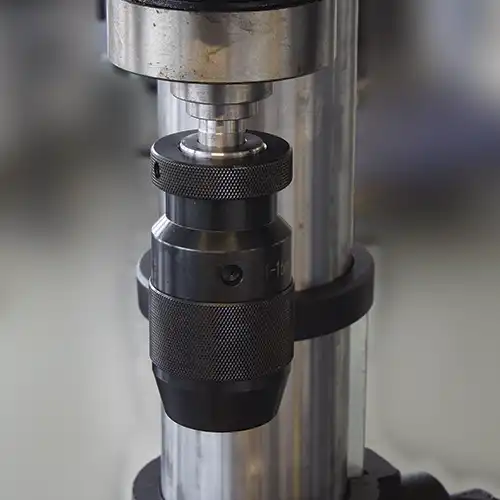

- Includes Drill Chuck & Arbor, Chuck Key and Drill Drift
Our unique ‘V’ section head has been specifically designed to house larger bearings for greater arbour support and drill accuracy

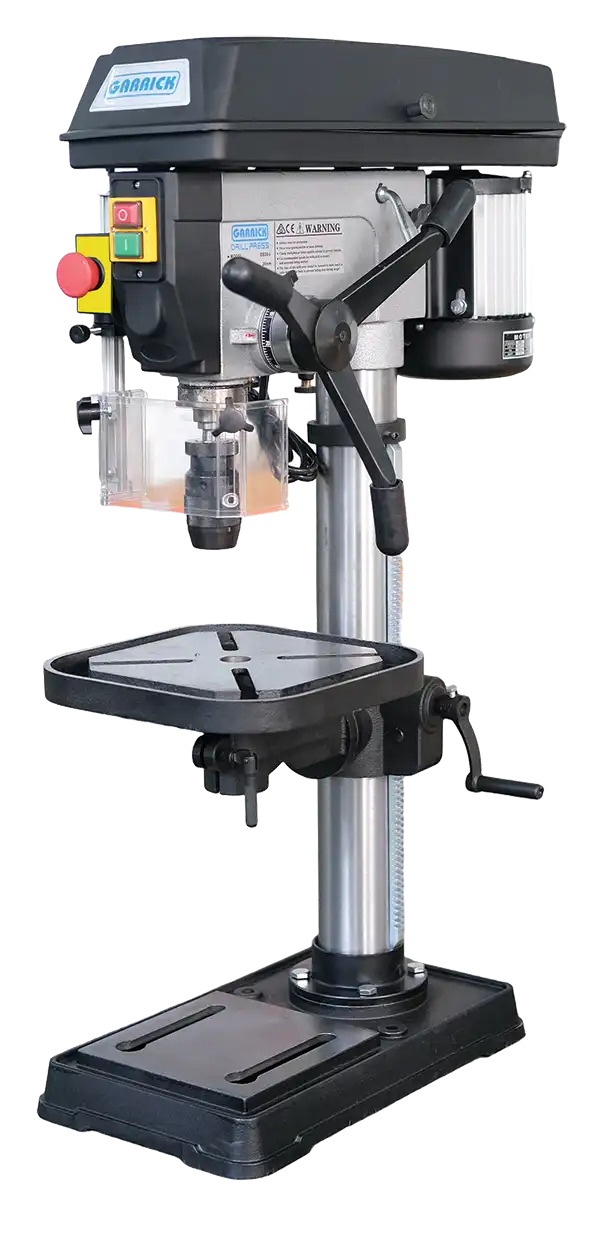

DB20

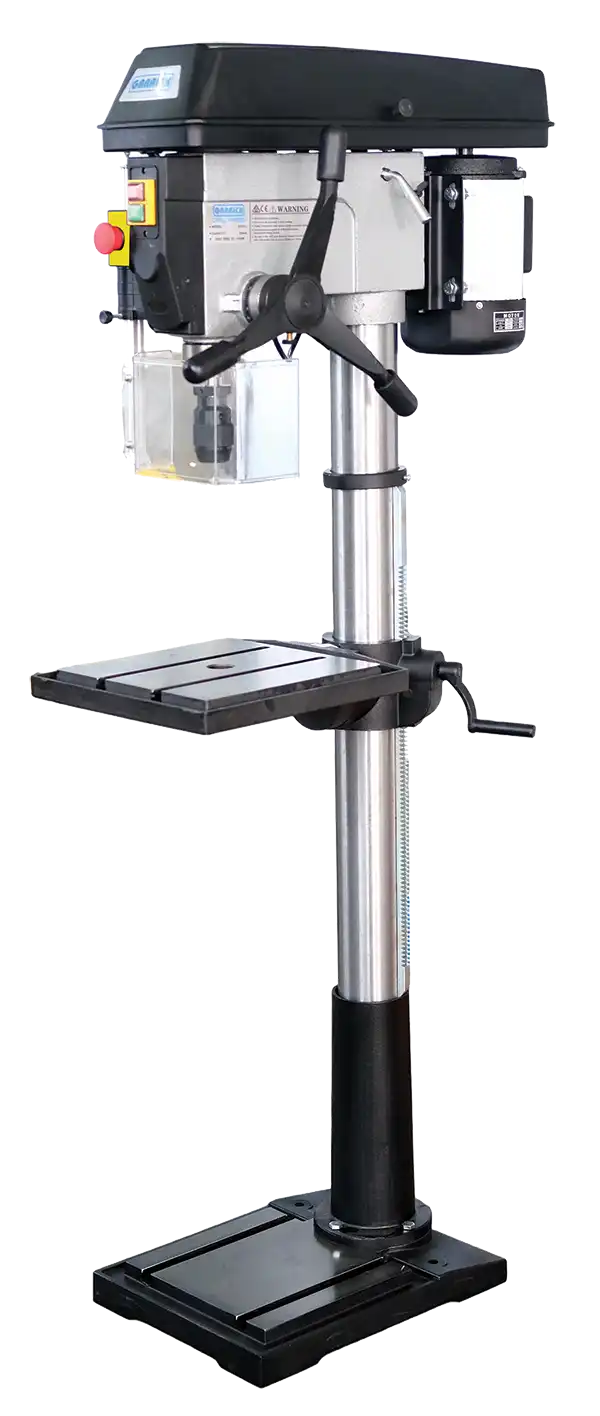

DP25

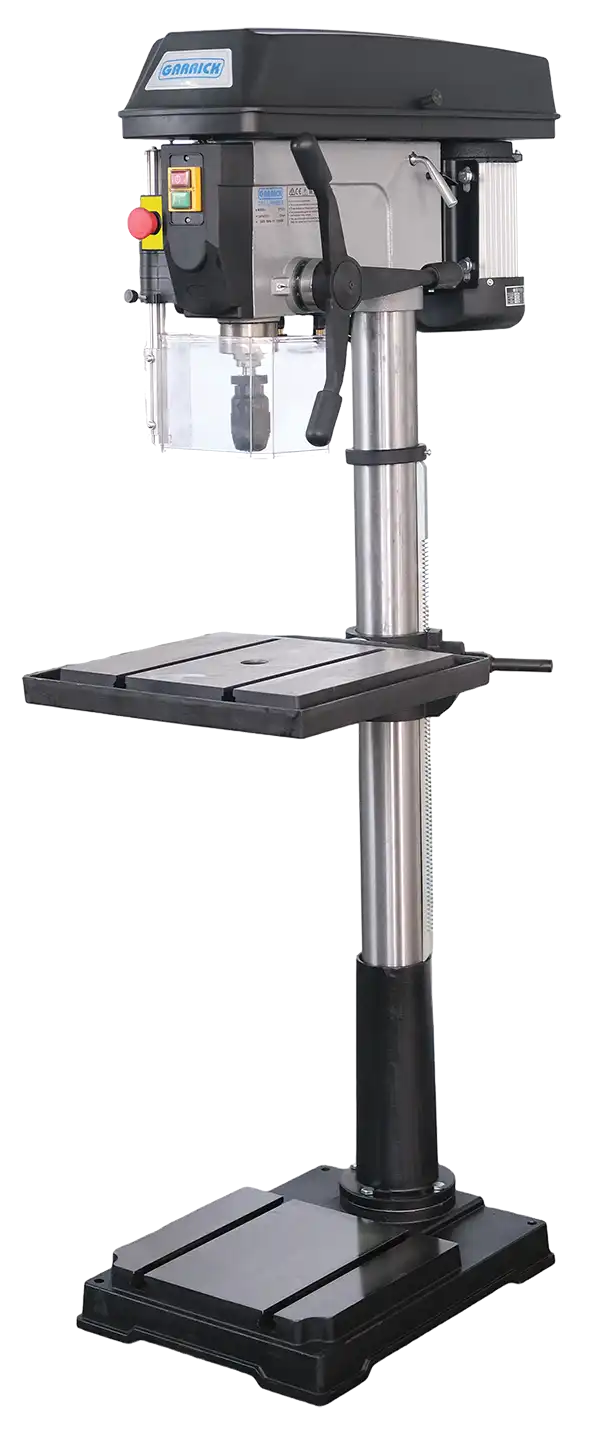

DP32
| MODEL | DB20 | DP25 | DP32 |
|---|---|---|---|
| Type | Bench | Pedestal | Pedestal |
| Motor | 650W | 750W | 1100W |
| Max Drilling Capacity | 20mm | 25mm | 32mm |
| Chuck Size (mm) | 3 - 16 | 3 - 16 | 3 - 16 |
| Swing (mm) | 356 | 432 | 508 |
| Spindle Taper | MT2 | MT3 | MT4 |
| Spindle Travel (mm) | 80 | 80 | 120 |
| No. of Speeds | 12 | 12 | 12 |
| Speed Range (rpm) | 120 - 2580 | 120 - 2580 | 150 - 2700 |
| Overall Height (mm) | 1000 | 1650 | 1710 |
| Column Diameter (mm) | 80 | 80 | 92 |
| Quill Diameter | 52 | 52 | 72 |
| Table Dimensions (mm) | 290 x 290 | 345 x 345 | 475 x 425 |
| Carton Dimensions | 840 x 570 x 290 | 1440 x 650 x 320 | 1475 x 650 x 350 |
| Weight (kg) - Nett / Gross | 82 / 86 | 108 / 117 | 143 / 153 |
Recommended Drilling Speeds
Use these drilling speeds as a basic guide for twist drills. For stainless steel, use a slower speed than recommended for steel. It is essential not to run a drill too fast on stainless steel as it will heat up easily and become hard, making it very difficult to drill.
| Drill Bit Diameter | Steel | Aluminium |
|---|---|---|
| 5mm | 1290 rpm | 1820 rpm |
| 10mm | 500 rpm | 600 rpm |
| 15mm | 277 rpm | 350 rpm |
| 20mm | 194 rpm | 290 rpm |
| 25mm | 149 rpm | 245 rpm |
| 30mm | 129 rpm | 198 rpm |
