Steel Cutting
Circular Cold-cut Saws
Garrick Circular Cold-Cut Saws are designed to provide fast, economical cutting of all types and shapes of Ferrous Metals with a precision, burr-free milled finish.

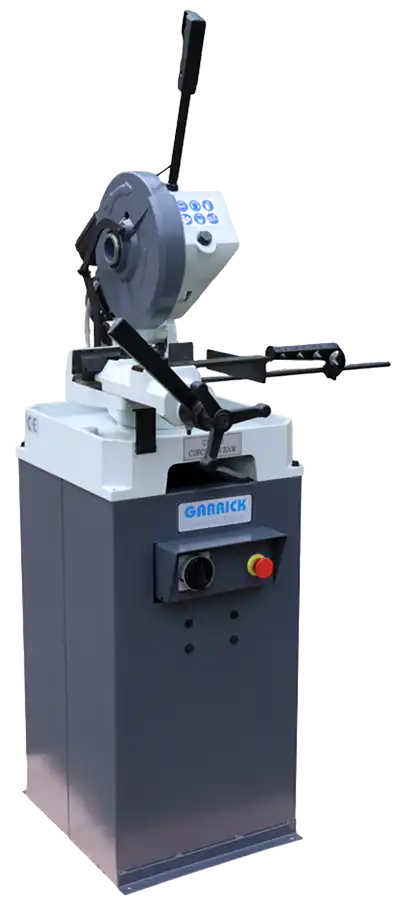

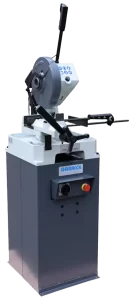

Model 0275 - 1-phase/1-speed Manual
275mm blade capacity
1 phase/1-speed manual operation Circular Cold-cut Saw
Garrick Circular Cold-Cut Saws are designed to provide fast, economical cutting of all types and shapes of Ferrous Metals with a precision, burr-free milled finish.
They have a heavy duty cast iron gearbox, fully supported gears, balanced & adjustable pivot point, automatic blade guard cover, quick release vice mechanism for repeat cutting, and built in blade coolant system, all making these saws especially suitable for industrial use.

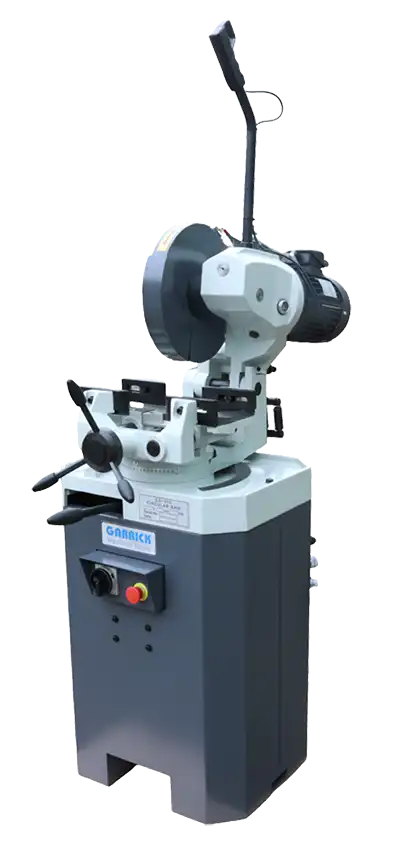

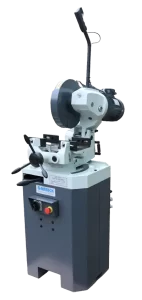

Model 0315 - 1-phase/1-speed Manual
Model 0315 - 3-phase/2-speed Manual
315mm cutting capacity,
1 phase/1-speed OR 3-phase/2-speed manual operation Circular Cold-cut Saw
Garrick Circular Cold-Cut Saws are designed to provide fast, economical cutting of all types and shapes of Ferrous Metals with a precision, burr-free milled finish.
They have a heavy duty cast iron gearbox, fully supported gears, balanced & adjustable pivot point, automatic blade guard cover, quick release vice mechanism for repeat cutting, and built in blade coolant system, all making these saws especially suitable for industrial use.

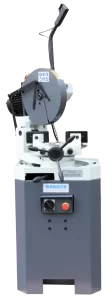

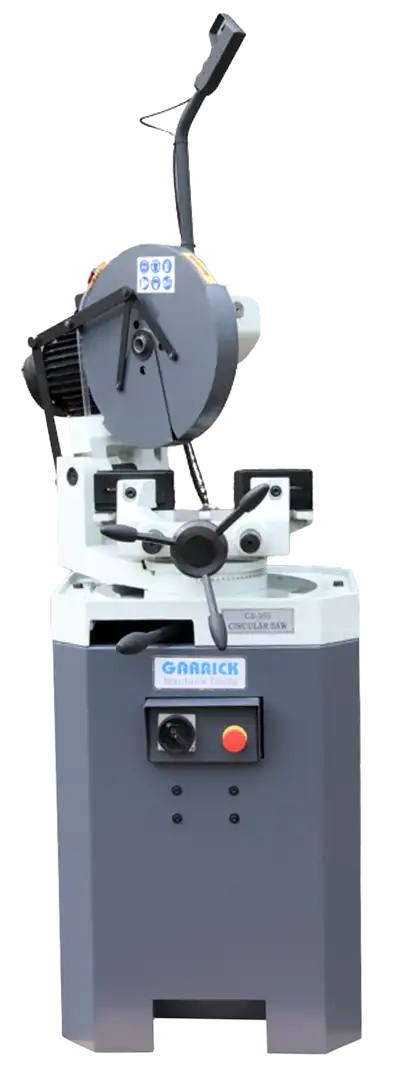

Model 0350 - 1-phase/1-speed Manual
Model 0350 - 3-phase/2-speed Manual
350mm cutting capacity,
1 phase/1-speed OR 3-phase/2-speed manual operation Circular Cold-cut Saw
Garrick Circular Cold-Cut Saws are designed to provide fast, economical cutting of all types and shapes of Ferrous Metals with a precision, burr-free milled finish.
They have a heavy duty cast iron gearbox, fully supported gears, balanced & adjustable pivot point, automatic blade guard cover, quick release vice mechanism for repeat cutting, and built in blade coolant system, all making these saws especially suitable for industrial use.
| MODEL | 0275 | 0315-1PH | 0315-3PH | 0350-1PH | 0350-3PH |
|---|---|---|---|---|---|
 |  |  | |||
| Motor | 240V Single Phase | 240V Single Phase | 415V Three Phase | 240V Single Phase | 415V Three Phase |
| Speeds | 1-speed | 1-speed | 2-speed | 1-speed | 2-speed |
| RPM | 40 | 36 | 18 / 36 | 36 | 18 / 36 |
| Power | 1.1kW / 1.5HP | 1.1kW / 1.5 HP | 1.3kW / 1.7HP | 1.1kW / 1.5 HP | 1.3kW / 1.7HP |
| Shipping | 174kg / 0.78m3 | 263kg / 0.78m3 | 263kg / 0.78m3 | 270kg / 0.78m3 | 270kg / 0.78m3 |
| MODEL | Cut Angle |  |  |  |  |  |
|---|---|---|---|---|---|---|
| 0275 | 0° | 60mm | 60mm | 75 x 45mm | 38mm | 38mm |
| 45° | 55mm | 55mm | 55 x 45mm | 32mm | 32mm | |
| 0315 | 0° | 100mm | 100mm | 140 x 90mm | 38mm | 38mm |
| 45° | 90mm | 90mm | 100 x 90mm | 32mm | 32mm | |
| 0350 | 0° | 120mm | 120mm | 140 x 100mm | 80mm | 80mm |
| 45° | 105mm | 105mm | 100 x 100mm | 70mm | 40mm |
